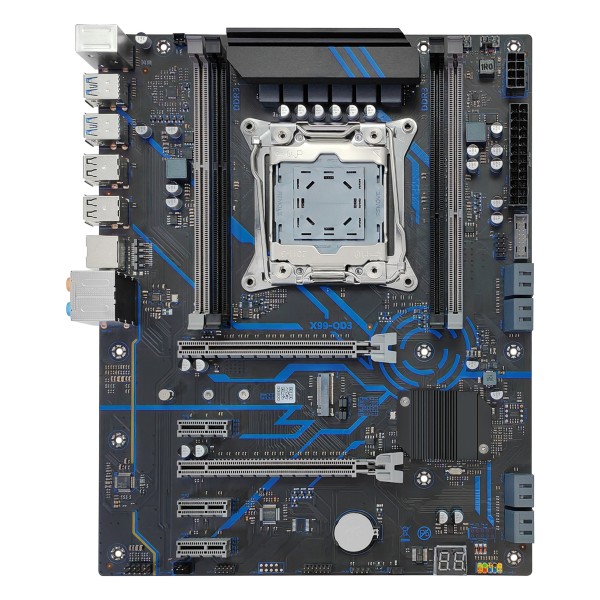

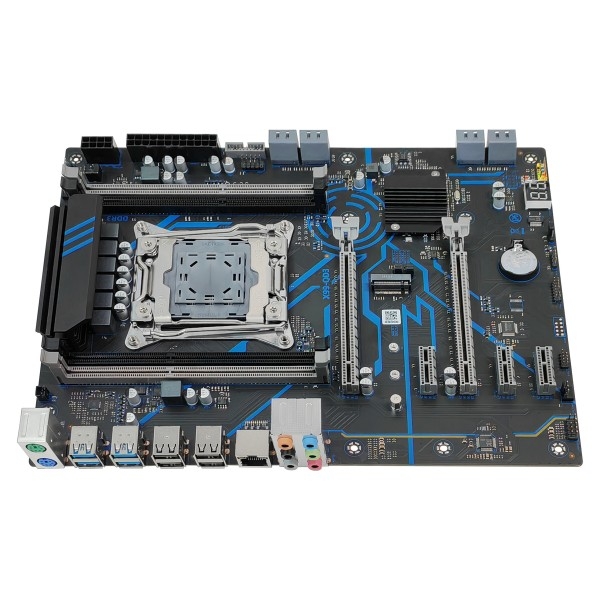

Motherboard chip |
Intel C612 |
|
CPU |
InteI LGA 2011-3 pin series CPU |
|
|
Optional: E52673v3/E52676v3/E52666v3/E52678v3/E52696v3/E52686v4/E52696v4 and so on. |
|
memory |
4*DDR3 DIMM, 1866MHz/128G, maximum support of 128G (dual channel, black slot as the main channel). |
|
Cunzhu |
1* M.2 slot (PCI-E 3.0x4 high-speed NVME and SATA 3.0, need to switch the cap); 8*SATA3.0 6Gb/s interface |
|
Display interface |
PCIE X16 slot is connected to the display card. |
|
network |
1*RJ45 interface |
|
Network card chip |
Realtek gigabit network card chip |
|
PCIE slot |
2*PCIE 3.0 X16 slot; 3*PCIE2.0 X1 slot |
|
audio frequency |
3.5MM interface, 7.1 audio |
|
Audio chip |
Realtek HD audio chip |
|
serial port |
/ |
|
PS/2 interface |
1*PS2 keyboard mouse interface |
|
Usb interface |
Rear interface: 4*USB2.0/4*USB3.0 Built-in pins: 1 set of USB2.0 pins /1 set of USB3.0 pins (2 USB2.0 ports and 2 USB3.0 ports can be expanded). |
|
Functional pin |
1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 1*3Pin SYS fan; |
|
Power input |
24Pin+8Pin ATX power socket |
|

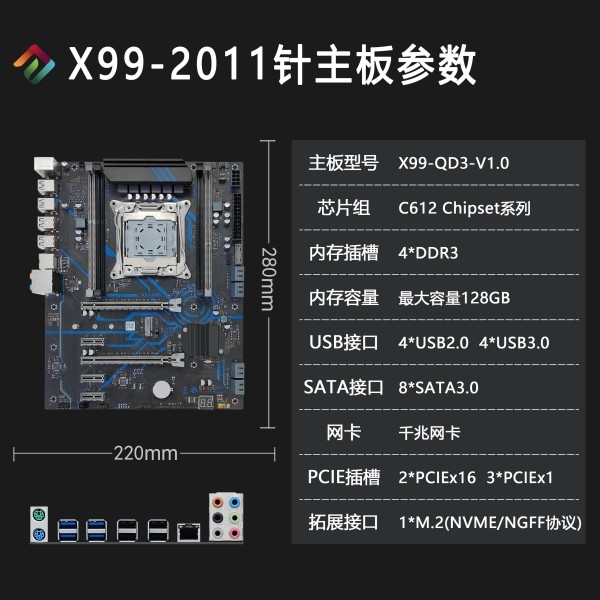

product size |
220 x 280 mm x 4L |
|
Working temperature |
-10℃~60℃ |
|
Working humidity requirements |
10%~90% without condensation |
|
Storage temperature |
-25℃~70℃ |
|
power consumption |
Standby power consumption: 40~80W Full load power consumption: 220~320W (for reference only) |
|
other |
1*JBAT jumping cap; 2*5Pin diagnostic card interface; 1*14Pin TPM interface |
