Motherboard chip |
Intel X79 |
|
CPU |
Intel Xeon E5 LGA2011 processor |
|
|
Optional: E52680V2, E52670V2, E52696V2, E52687V2 and so on. |
|
memory |
4*DDR3 DIMM, dual channel (black as the main channel and red as the secondary channel), 1066/1333/1600/1866MHZ, and single slot supports 32G at most. |
|
Cunzhu |
1* M.2 slot (NVME/NGFF dip switch switching); , 1*SATA3.0 interface, 3*SATA 2.0 interface |
|
network |
1*RJ45 interface |
|
Network card chip |
Realtek RTL8111H Gigabit NIC Chip |
|
PCIE slot |
1*PCIE X1 slot; 1*PCIE X16 slot |
|
audio frequency |
1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin |
|
Audio chip |
Realtek ALC662 HD audio chip |
|
TPM |
1*TPM external pin |
|
Usb interface |
IO interface: 8*USB2.0 interface. Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded) |
|
Functional pin |
1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan |
|
Power input |
24Pin+8Pin ATX power socket |
|

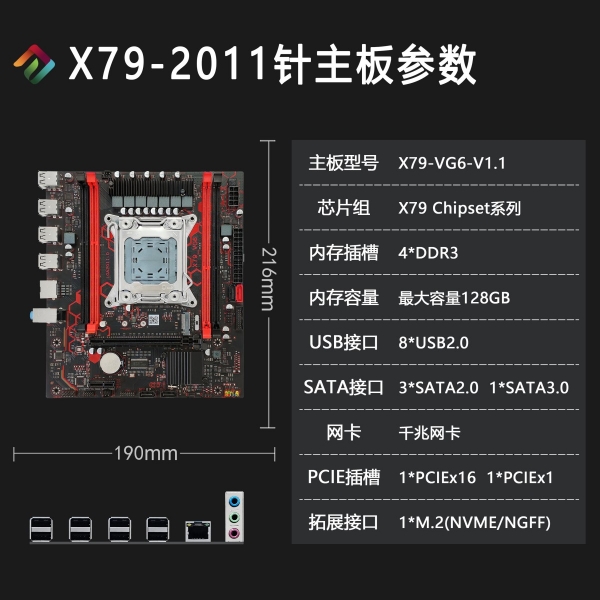

product size |
M -ATX motherboard specification, 216MM x 190MM x 4L |
|
power consumption |
Standby power consumption: 50~70W Full load power consumption: 180~260W |
|
other |
1*BAT； 2*5Pin diagnostic card interface |
