Motherboard chip

Intel B250

CPU

Intel 6th, 7th, 8th and 9th Generation Processors

Optional: I3-6100, I5-9400F, I7-6700K, I3-9100, etc.

memory

2*DDR4 DIMM, 2133, 2400, 2666MHz, single slot maximum support 32G.

Cunzhu

1* M.2 slot (NVME)； only); 4*SATA 3.0 interface

Display interface

1*HDMI 1.4 interface, 1*VGA interface

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

PCIE slot

1*PCIE X16 slot; 1*PCIE X1 slot

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin

Audio chip

Realtek ALC887 HD audio chip

TPM

1*TPM

PS/2 interface

1*PS2 keyboard mouse interface

Usb interface

IO interface: 2*USB3.0, 2*USB2.0.

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be expanded)

1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

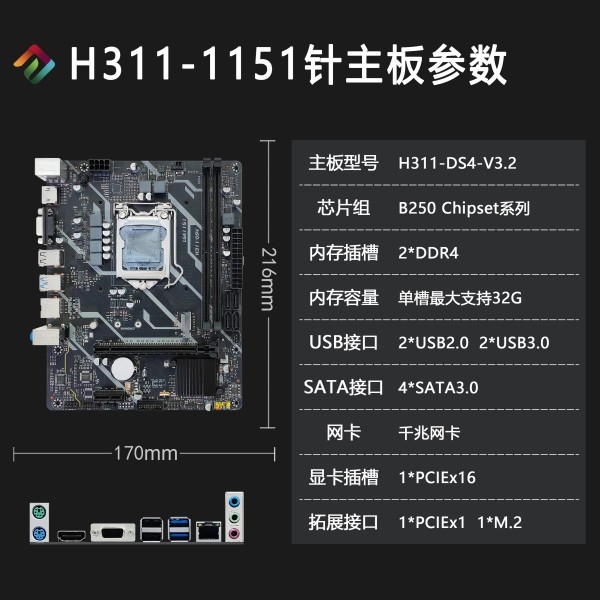

product size

ATX motherboard specification, 170MM x 216MM x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~260W

other

2*5Pin diagnostic card interface
