Motherboard chip

Intel H110

CPU

Support LGA1151 slot-9th/8th/7th/6th generation processors:

Intel Core i7/i5/i3 processors;

Intel® Pentium® processor/Intel® Celeron® processor, etc.

Optional: i3-7100, g5420, i7-9700, i5-9400f, etc.

memory

Dual-channel memory architecture;

2*288Pin-DDR4 DIMM slot, supporting the maximum memory of 32GB；; Support DDR4 2666/2400/2133MHz.

(Actual memory frequency support depends on processor type and memory stick)

TPM

1*TPM2.0 pin (14-1Pin)

Display interface

1*HDMI1.4 ； 1*VGA (supporting synchronous dual display)

save

Intel H110 Chipset:

1* M.2 slot (NVME protocol); Support 2280/2260/2242 storage devices (PCIe2.0 x4 mode is supported).

4*SATA 3.0 interface

network

1*RJ45 network interface (Realtek 1Gbps network card chip)

PCIE slot

1*PCIEXP2 slot (Intel processor 1x PCIe3.0 x16 slot);

1*PCIEXP1 slot (Intel H110 chipset 1x PCIe2.0 x1 slot)

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*JAudio1 front audio connector (Realtek 7.1 HD audio chip)

Usb interface

Rear panel: 2 * USB 3.0; 4*USB2.0；

Front panel: 1 set of FUSB20_2 connectors (2 USB2.0 ports can be extended);

1 set of FUSB30_1 connector (2 USB3.0 ports can be extended);

Functional pin

1*F_PANEL1 panel pin; 1*4Pin CPU_FAN1； 1*3Pin SYS_FAN1; 1*3Pin SYS_FAN2

Power input

24Pin+8Pin ATX power socket

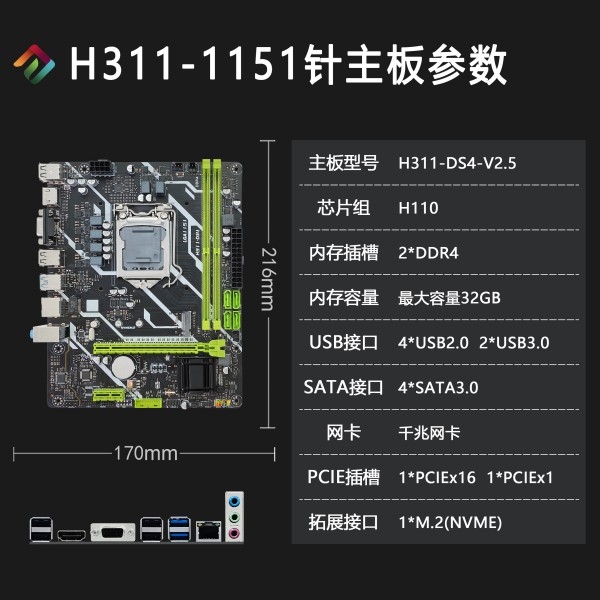

product size

M-ATX motherboard specification, 170 x 216 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~260W (for reference only)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

1*JBAT needle connection; 1*DEBUG pin; 1*SPEAK pin (buzzer)
